KYMERA SNMP DRIVER

SNMP Module Image

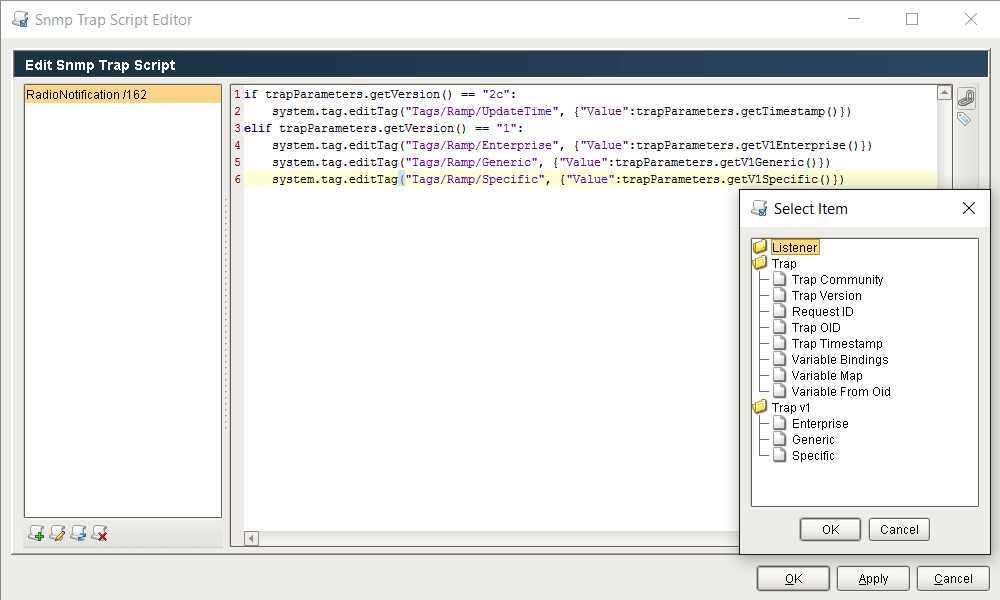

The Kymera SNMP Driver retrieves data from SNMP V1, V2c and V3 agents making it available via OPC so that Ignition and other OPC-UA compliant systems can monitor network health and computer statistics. In addition to standard SNMP functionality, V1 Traps and V2c Notifications can be handled within customizable scripts within Ignition.

$2,500 USD ($1,800 – 50 devices, $1,200 – 25 devices)

  • 2.83.0.2 – Ignition 8.3 to 8.3.1
    •  Fixes:
      • Custom MIB upload.
      • Custom MIB configuration from UI.
  • 2.83.0 – Ignition 8.3
    • Known issues:
      • Uploading custom MIB files is currently unavailable. The SNMP module looks for custom MIB files under the data/drivers/snmpmibs/mibs/custom/ folder located in the Ignition install directory. It is still possible to put provide the module access to these custom MIBs in this manner.
      • The custom MIB selection page is currently unavailable. To create a device with a custom MIB, in the CustomMibPath field of device creation, place a comma separated list of relative paths of the files e.g. /ietf/IP-MIB,/ietf/RFC-1215,/custom/yourMibHere. Available MIBs can be found in the data/drivers/snmpmibs/mibs/ folder located in the Ignition install directory



  • 1.11.45.1757 – Ignition 8.1.45 to 8.1.x Current
    • Added SNMP walk
    • Added automated discovery perspective project
  • 1.11.26 – Ignition 8.1.26 to 8.1.45
  • 1.11.7 – Ignition 8.1.7 to 8.1.25
  • 1.11.0 – Ignition 8.1.0 to 8.1.6

For earlier releases please check the Archive.
